SteadyDraw Custom Size Request

Want a SteadyDraw for a syringe or vial size we don’t make yet? Fill this out and I’ll build it.

Prefer paper? Download the PDF version and email it back instead.

1 — Who are you?

So I can reply with questions and the finished design.

Name

Etsy username (optional)

2 — What are you using?

Syringe brand & model (e.g., BD Ultra-Fine, EasyTouch)

Syringe capacity (mL / cc)

Needle

Vial capacity (mL)

Vial brand / medication packaging (if known)

3 — Syringe measurements

Millimeters, plunger pushed all the way in. Calipers are best, a ruler works fine. Skip anything you can’t measure.

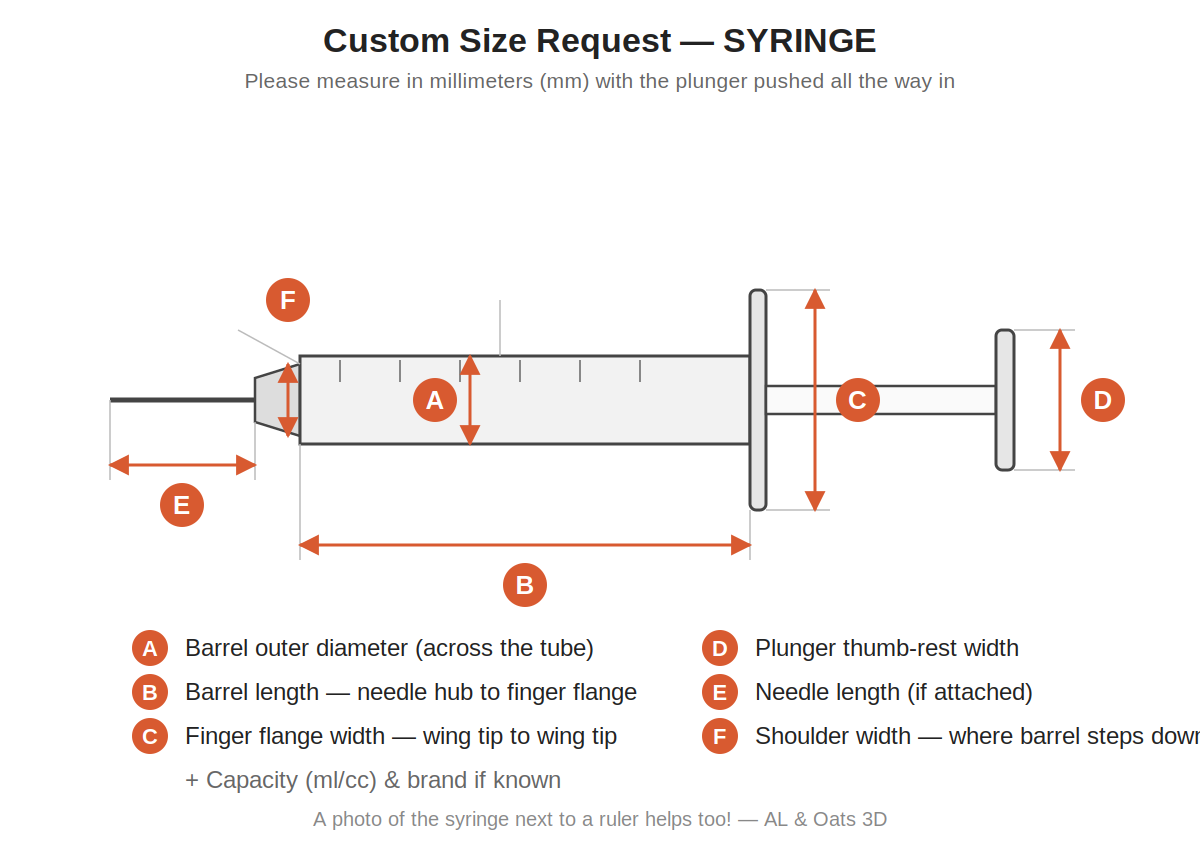

Syringe diagram showing measurements A through F: A barrel outer diameter, B barrel length from needle hub to finger flange, C finger flange width wing tip to wing tip, D plunger thumb-rest width, E needle length, F shoulder width where the barrel steps down.

ABarrel outer diametermm

BBarrel length — needle hub to finger flangemm

CFinger flange width — wing tip to wing tipmm

DPlunger thumb-rest widthmm

ENeedle length (if attached)mm

FShoulder width — where the barrel steps downmm

4 — Vial measurements

Millimeters, cap on.

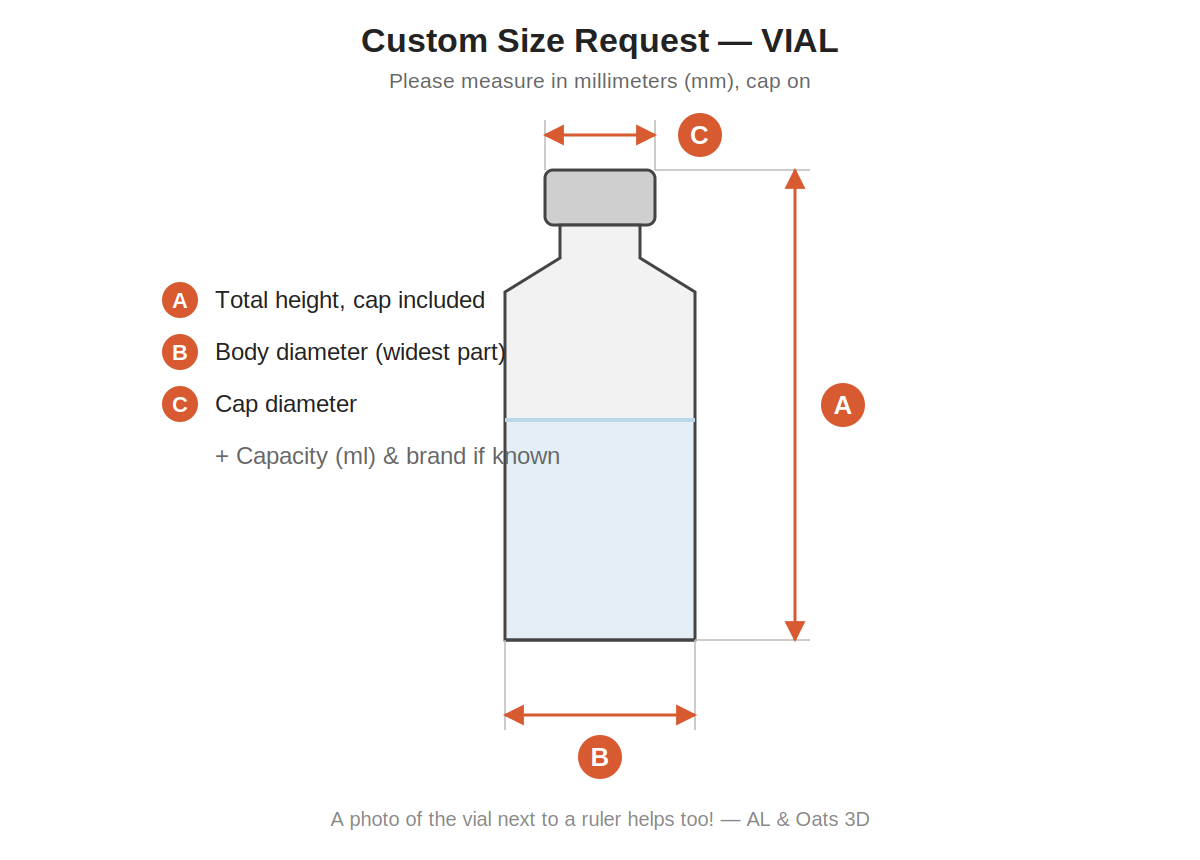

Vial diagram showing measurements A through C: A total height with cap included, B body diameter at the widest part, C cap diameter.

ATotal height, cap includedmm

BBody diameter (widest part)mm

CCap diametermm

5 — Anything else?

Notes (optional — color requests, quantity, links, anything helpful)

Photos help enormously. After you submit, email a photo of your syringe and vial next to a ruler to [email protected] — even if you couldn’t measure everything.
